1972 · Chicago, Illinois
Ludwig Vistalite
Acrylic, Loud, and Unmistakably Seventies
Cast acrylic instead of wood: bright, brutally loud, and the most visually recognisable drum kit of the 1970s.
Key Facts
- Introduced
- 1972
- Material
- Cast acrylic (PMMA) tubing, not plies
- Peak years
- 1973–1979
- Icon
- John Bonham's amber Vistalite
Plates · Historical Models
The Gallery
Illustrative studio plates of the Ludwig Vistalite models that matter most. Select any plate for fullscreen viewing.

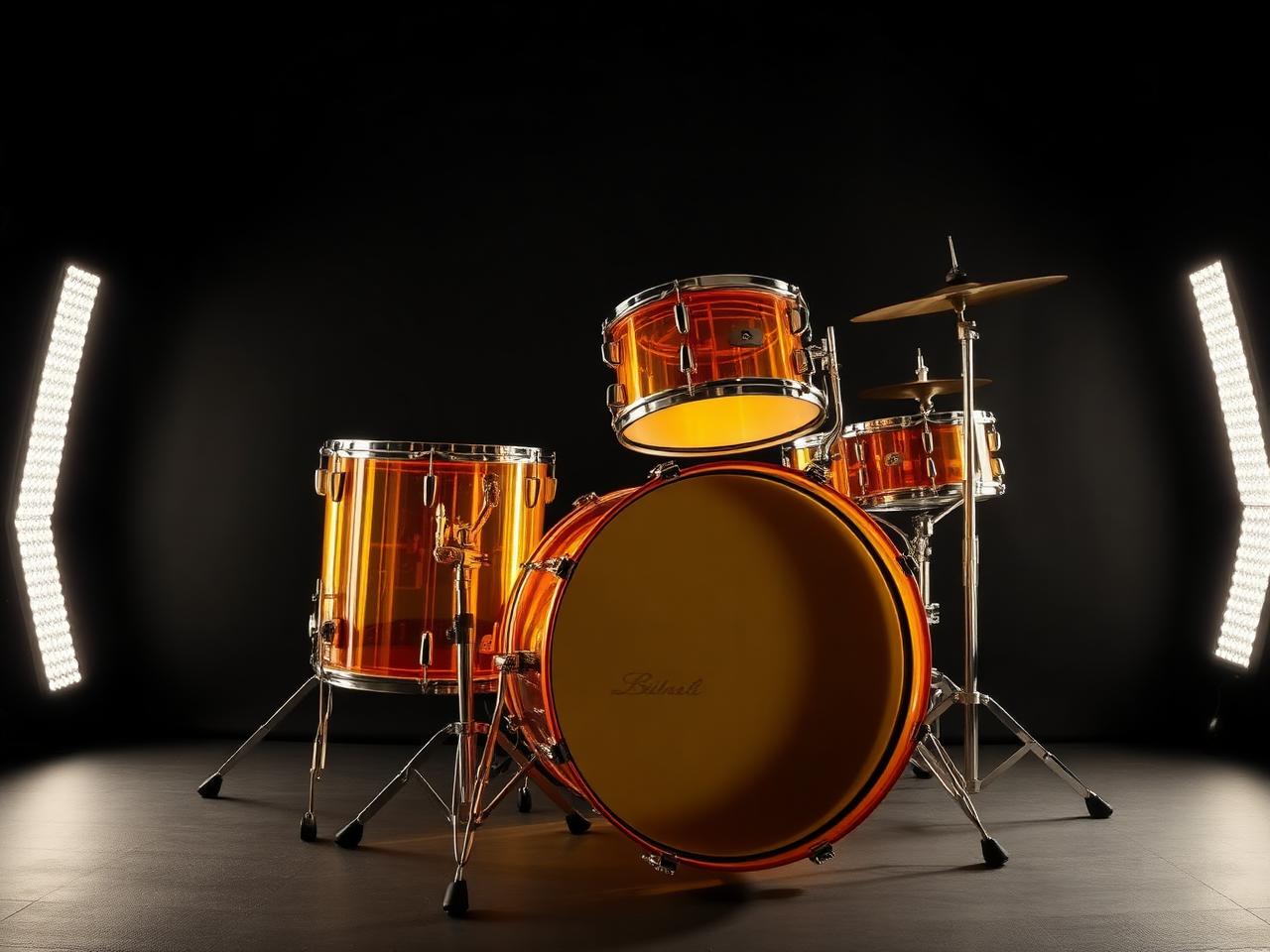

- 01 · 1973–1979
Amber Acrylic Kit
The finish that defined the decade: seamed cast acrylic tubes with no reinforcement rings, paired with an oversized bass drum for maximum stage volume.

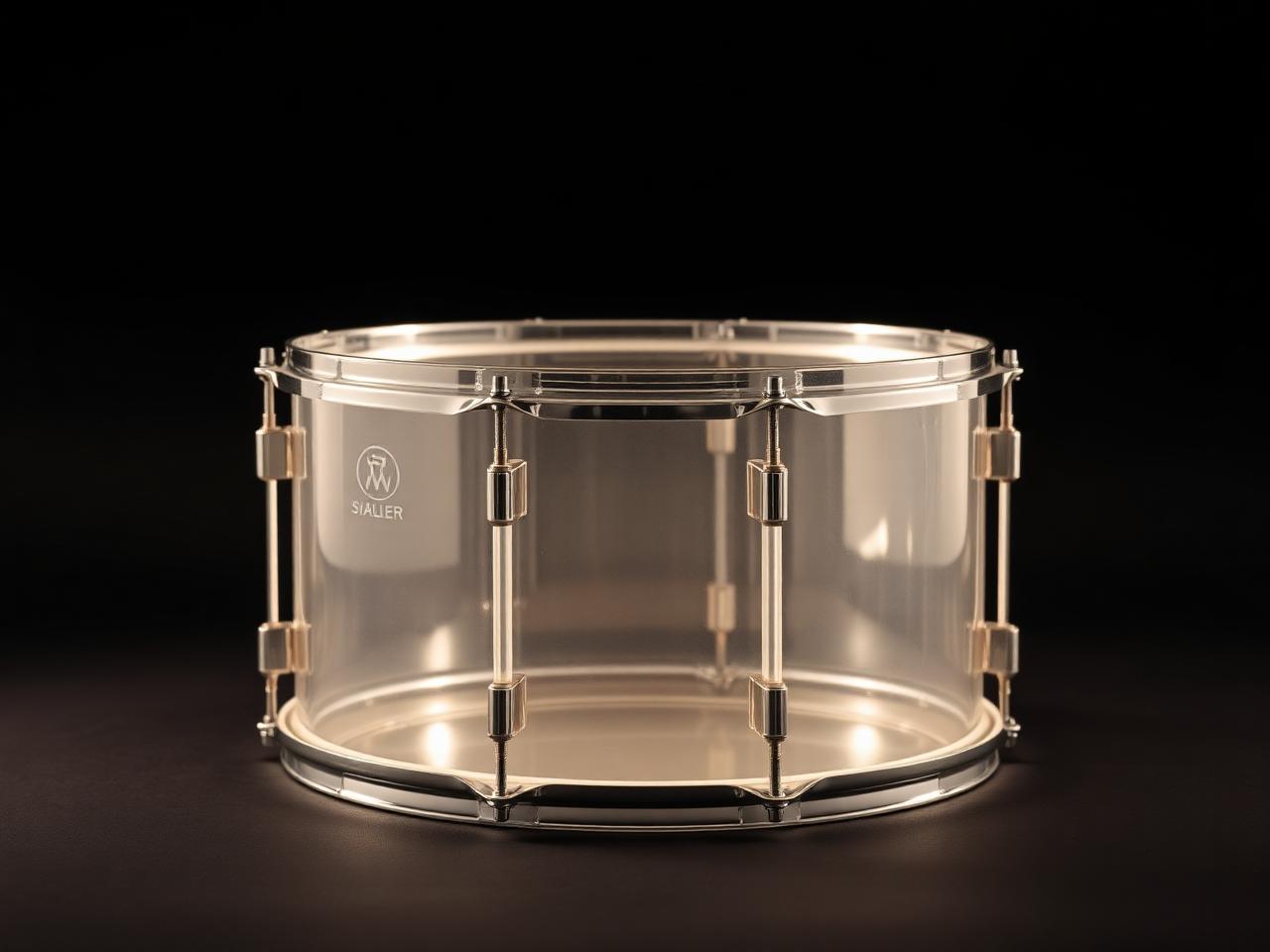

- 02 · 1972 onward
Clear Shell
Clear shells show every flaw — crazing at the seam, hairline cracks radiating from lug holes, and yellowing with age. Inspect every hole before buying.

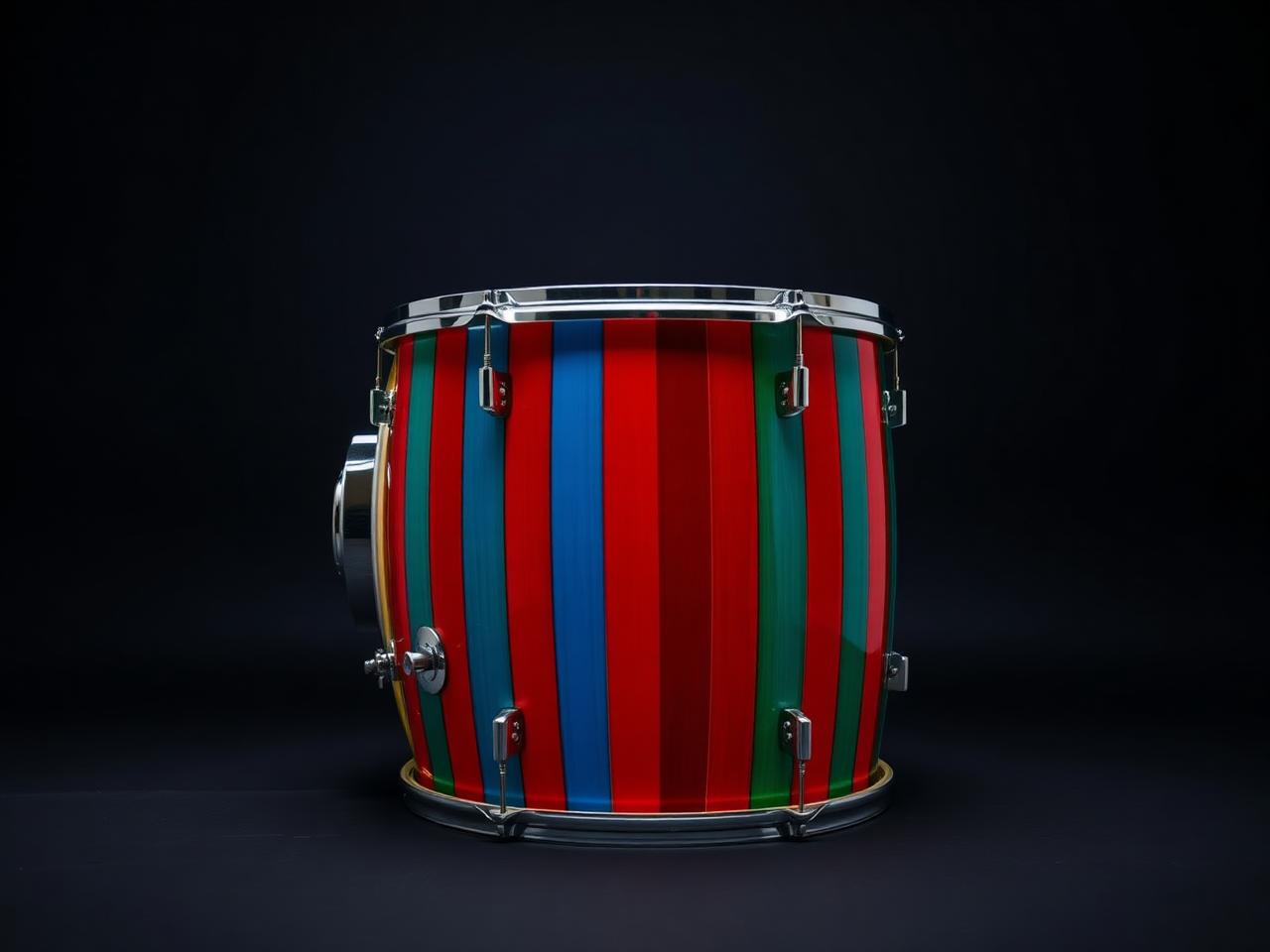

- 03 · Mid 1970s
Rainbow Pattern
Vertical multi-colour striping — the scarcest and most reproduced Vistalite pattern. Stripe alignment across a full kit is the value driver.
Why Acrylic
Ludwig was not first to acrylic — Fibes and Zickos got there earlier — but Ludwig had the distribution to make it a phenomenon. Vistalite shells are seamed cast acrylic tubes rather than laminated plies, which removes the wood's natural damping. The result is a very loud, very bright drum with a fast attack and a long, uncontrolled decay that suits big rooms and close mics.
At a glance
- No reinforcement rings — the tube is structural
- Bearing edges cut directly into the acrylic
- Noticeably heavier than an equivalent 3-ply wood shell
Bonham and the Amber Kit
John Bonham's amber Vistalite, used through Led Zeppelin's mid-seventies tours and visible in The Song Remains the Same, is the reason the line is still in production as reissues. His setup — a 26" bass drum with matching amber toms — turned a novelty finish into a permanent piece of rock iconography.
At a glance
- 26" bass drum, 14"/16"/18" toms in amber
- Reissued repeatedly by Ludwig as an anniversary model
- Original 70s amber shells command the highest premiums
Colours and Variants
Vistalite shipped in single colours — amber, blue, red, green, yellow, clear, smoke — and in multi-colour patterns. The banded Tivoli and the vertical-stripe Rainbow kits are the scarcest and most faked. Ludwig also fitted some shells with internal lighting for the Tivoli line, which is a strong originality tell.
At a glance
- Single colours: amber, blue, red, green, yellow, clear, smoke
- Patterns: Rainbow (vertical stripes), Tivoli (banded, lit)
- Colour matching across a kit is a key value driver
Buying and Authenticating
Acrylic ages: check for hairline cracks radiating from lug and mount holes, crazing along the seam, and yellowing on clear shells. Original 1970s shells use blue/olive badges. Because the material is plastic, a cracked shell is effectively terminal for value — inspect every hole before committing.
At a glance
- Blue/olive badge = 1970s original
- Crack check: lug holes, mount plate, seam line
- Reissues are visually close but badged differently
The Tama Connection
Vistalite's cut-through brightness is the closest American analogue to what Tama chased with birch Superstar shells — maximum projection for large stages, achieved from a completely different material direction.
Sources & Citations
Every date, model name and construction detail on this page is drawn from the references below — manufacturer records, scanned period catalogs, auction results and contemporary press. Where a claim is not supported by these, it is marked as unverified in the text rather than stated as fact.
- 01Archive
Ludwig catalog scans, 1972–1979
Drum Archive
Period catalogs used for Vistalite introduction, colour options, Tivoli variants and pattern kits.
- 02Manufacturer
Vistalite acrylic model overview
Ludwig Drums (Conn-Selmer)
Current manufacturer description of the acrylic line and its reissues.
- 03Press
John Bonham amber Vistalite kit coverage
Modern Drummer
Contemporary and retrospective reporting on the amber Vistalite kit and its sizes.
Corrections welcome — dated evidence takes precedence over recollection.
